Sliding Systems

AL700

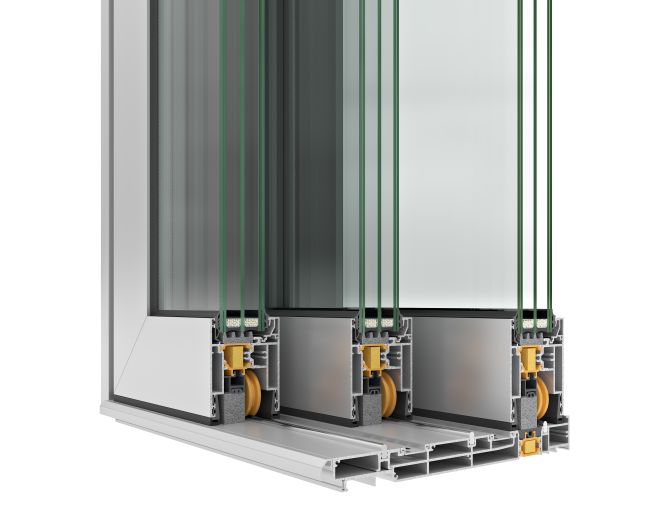

Thermal-brake product line for lift & slide frames, with EPDM gasket sealing.

Technical information:
  • 70mm sash width.
  • Lift & slide operation by German heavy duty mechanism up to 400kg.
  • Thermal-break U = 2,86 W/m *K. f
  • Sliding with steel rollers on stainless steel guide.
  • Multi-point lock.
  • Aluminum alloy AlMgSi (EN AW 6060)
  • Hardness 12 Webster or 70 HB minimum
  • Minimum Powder Coating Thickness 75μm minimum
  • Profile thickness (min-max) 1,8 - 2,2mm
  • Thermal-brake type Mechanical with PA 6.6 special type polyamide at 18,5 and 24mm in sash and frame PA 6.6
  • Profile Geometry Control EN DIN 12020-2 Compliant
  • Sash Depth dimensions (Width \ Height) 70mm \ 84mm, 95,5mm
  • Slide type Double teflon rollers on stain steel guide
  • Glazing type Double, up to 50mm
  • Maximum glazing weight 300+100Kg per sash (2 type of hardware 300Kg or 400Kg)
  • Sealing Horizontal and vertical using two rows of EPDM gaskets
